Home > Rene 41 Sheets and Plates

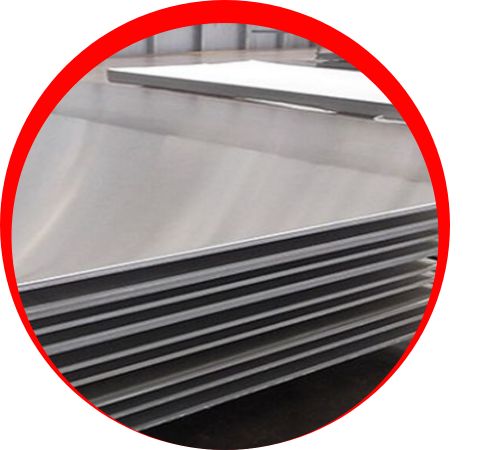

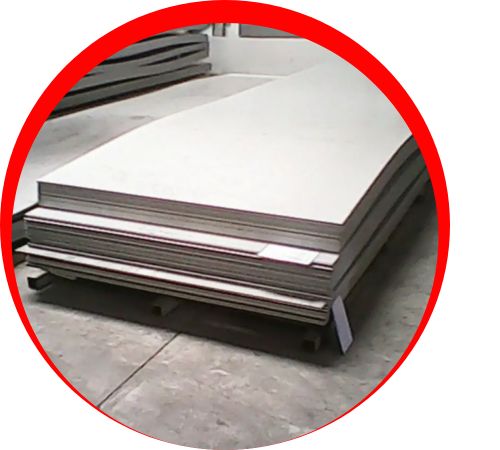

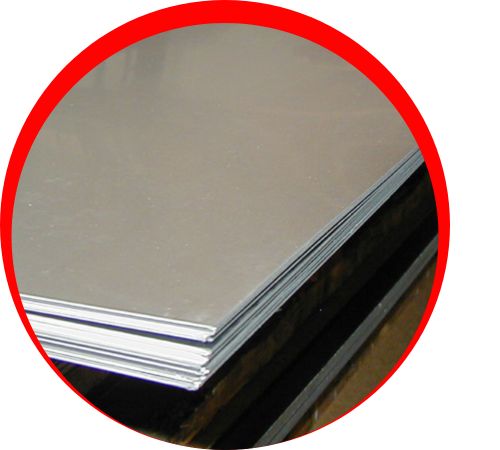

Nasir Nickel Alloys in Manama, Bahrain, offers premium Rene 41 sheets and plates, a nickel-chromium-cobalt-molybdenum superalloy known for exceptional high-temperature strength and oxidation resistance. Engineered with precise manufacturing processes, these sheets and plates meet the demanding requirements of aerospace, turbine engines, and other high-stress applications where durability and performance at elevated temperatures are critical. Nasir Nickel Alloys ensures top-quality Rene 41 products that withstand severe environments while maintaining mechanical integrity and service life.
Rene 41’s chemical composition typically includes 18-20% chromium, 10-12% cobalt, 9-10.5% molybdenum, 3-3.3% titanium, 1.4-1.8% aluminum, trace boron (0.003-0.01%), carbon up to 0.12%, iron up to 5%, and nickel balance. This blend delivers exceptional tensile strength ranging from 1350 to 1550 N/mm² (196 to 225 ksi) and excellent creep resistance up to 550°C (1020°F). Its age-hardening capability and oxidation resistance make it suitable for dynamic, high-temperature environments, supporting mechanical stability and structural integrity under thermal stress.
| Standard Specification : | AMS 5545, AMS 5712, AMS 5713, AMS 5800, EN 2.4973, GE B50T59, GE B50TF109, GE B50TF76, UNS N07041, Werkstoff 2.4973 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Cr | Ni | Mo | Co | Al | Ti | B | C | Fe | Mn | Si | S | Cu | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 18.00 | — | 9.00 | 10.00 | 1.40 | 3.00 | 0.003 | — | — | — | — | — | — |
| MAX | 20.00 | Balance | 10.50 | 12.00 | 1.80 | 3.30 | 0.01 | 0.12 | 5.00 | 0.10 | 0.50 | 0.015 | 0.50 |
| Mechanical & Physical Properties | 21°C | 427°C | 538°C | 649°C | 760°C | 871°C | 982°C |
|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 1261.7 | – | – | 1117 | 1048 | 710.2 | – |
| 0.2% Yield Strength /MPa | 820.5 | – | – | 765.3 | 751.5 | 579.2 | – |
| Elongation % | 21 | – | – | 14 | 14 | 11 | – |
| Coefficient of Thermal Expansion µm/m⁰C | – | 13.3 | 13.7 | 14.3 | 15.1 | 15.5 | 16.7 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | 14.4 | 16.1 | 17.9 | 19.6 | 21.4 | – |
| Modulus of Elasticity / x105 MPa | – | 2 | 1.93 | 1.79 | 1.72 | 1.65 | 1.52 |
At Nasir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic Sheet and Plates in Manama, Bahrain, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Bahrain, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Rene 41 sheets and plates are commonly used in jet engine components such as turbine blades, casings, and fasteners, as well as high-speed airframe parts, afterburner components, and turbine wheels. Its outstanding strength-to-weight ratio and resistance to high temperature oxidation make it ideal for aerospace, power generation, and other industries requiring materials that perform reliably under extreme thermal and mechanical stresses. Rene 41 supports long-term durability in critical high-performance applications.
