Haynes 230 Bar is a top-notch, high-strength alloy made from nickel, chromium, tungsten, and molybdenum, crafted for outstanding performance in extreme heat and corrosive settings. As a reliable manufacturer and supplier of Haynes 230 Bars in Manama, Bahrain, we provide high-quality products designed for long-lasting reliability in tough industrial applications. This alloy is well-known for its impressive resistance to oxidation, nitriding, and carburization, making it excel in environments that experience intense thermal cycling. Produced with meticulous precision, these bars showcase excellent metallurgical stability, great ductility, and remarkable mechanical strength, making them a go-to choice for industries like aerospace, chemical processing, and power generation.
Haynes 230 Bars are primarily made of nickel and chromium, with tungsten and molybdenum added for enhanced high-temperature strength and corrosion resistance. The alloy also includes small amounts of iron, carbon, silicon, and manganese to improve stability and workability. Haynes 230 boasts impressive tensile and yield strength, exceptional creep resistance, and outstanding oxidation resistance up to 1149°C. It maintains dimensional stability under thermal stress and offers superior resistance to fatigue and cracking. Its well-balanced composition makes it perfect for challenging operating conditions involving high heat, pressure, and corrosive gases.
| Standards : | ASTM 5878, ASME S5878 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

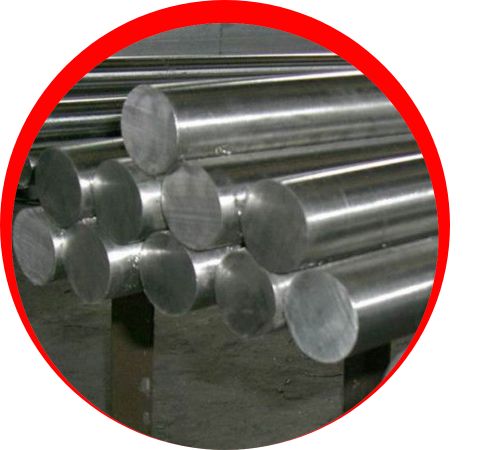

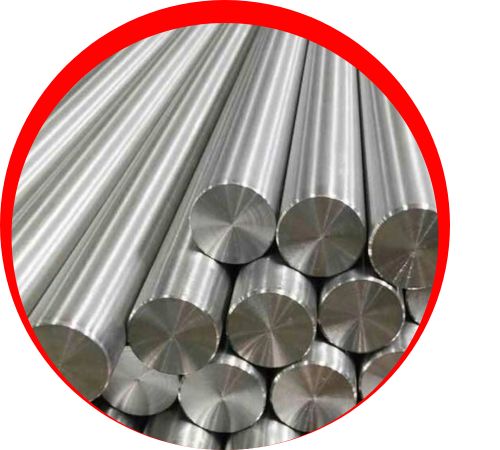

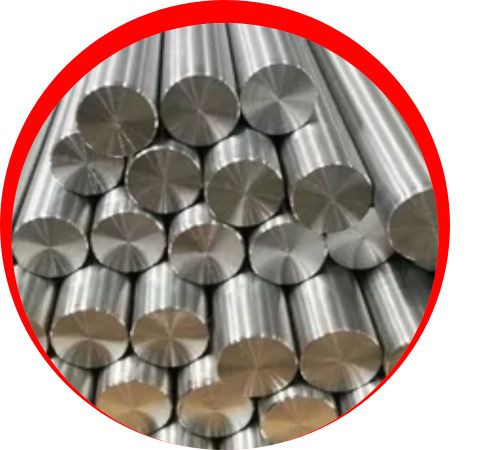

| Round bar size : | Diameter: 3-~800mm |

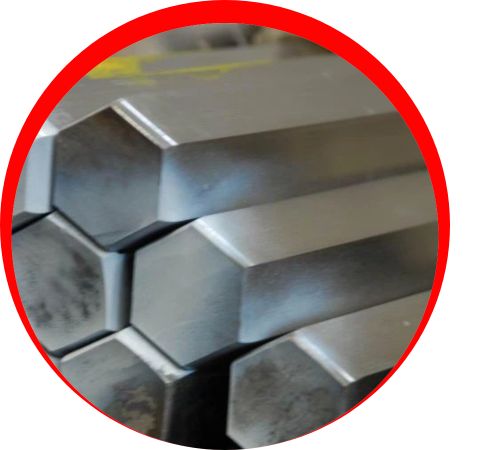

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

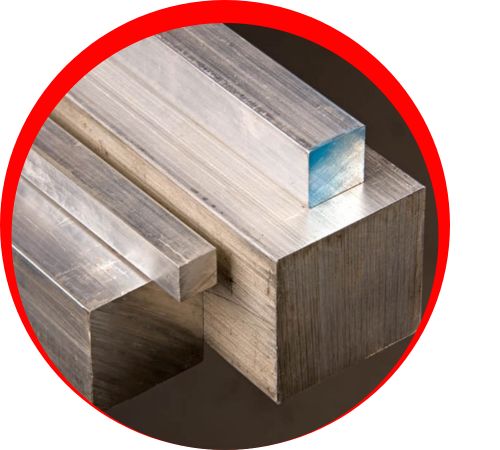

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | P | S | Si | Ni | Cr | Fe | W | B | La | Co | Ai | Ti | Cu | La | Mo |
| Haynes 230 | 0.05-0.15 | 0.30-1.0 | 0.03 max | 0.015 max | 0.25-0.75 | Rem | 20.0-24.0 | 3.0 max | 13.0-15.0 | 0.015 max | 0.005-0.05 | 5.0 max | 0.20-0.50 | 0.10 max | 0.50 max | 0.005-0.05 | 1.0-3.0 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness HB |
| ksi – 758, MPa – 110 | ksi – 310, MPa – 45 | 35 % | 241 max |
At Nasir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Haynes 230 Bar in Manama, Bahrain, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Bahrain, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Haynes 230 Bars find extensive use in industries that demand exceptional performance at high temperatures. Typical applications include gas turbine combustion systems, furnace components, heat-treating fixtures, and equipment for power plants. The alloy is also utilized in chemical processing facilities for reactors, high-temperature ducting, catalyst supports, and systems handling corrosive gases. In the aerospace sector, Haynes 230 is favored for high-strength engine parts, structural components, and afterburner assemblies. Its remarkable properties make it a reliable choice for various demanding applications.
