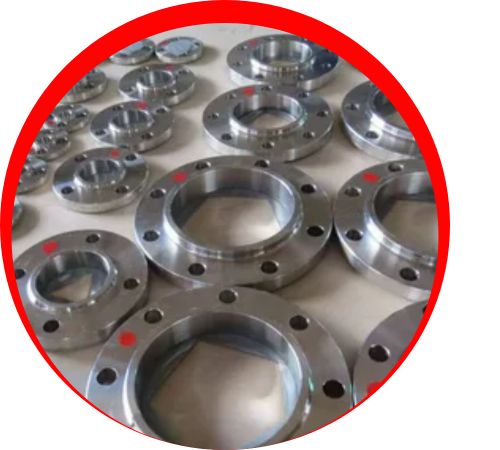

At Nasir Nickel Alloys in Manama, Bahrain, Duplex Steel 2205 Flanges are engineered to provide exceptional corrosion resistance, high mechanical strength, and long-term reliability for demanding chemical, petrochemical, marine, and industrial applications. Manufactured from a duplex stainless steel alloy with a balanced microstructure of austenite and ferrite, these flanges deliver superior resistance to pitting, crevice corrosion, and stress corrosion cracking while maintaining excellent structural integrity. Precision-engineered for leak-proof connections and consistent performance, Duplex Steel 2205 Flanges are ideal for chemical processing units, offshore platforms, marine systems, and high-pressure pipelines, offering durable and reliable solutions in aggressive environments.
Duplex Steel 2205 Flanges are primarily composed of iron, chromium, nickel, and molybdenum, with nitrogen additions to enhance corrosion resistance and mechanical strength. This composition ensures excellent resistance to pitting, crevice corrosion, and stress corrosion cracking in chloride-rich and aggressive chemical environments. Mechanically, these flanges provide high tensile and yield strength, excellent toughness, and fatigue resistance under fluctuating pressures and thermal cycling. With dimensional stability and structural integrity in harsh chemical, marine, and high-pressure conditions, Duplex Steel 2205 Flanges combine superior corrosion resistance with robust mechanical performance for reliable long-term operation.
| Specifications | Duplex 2205 |
|---|---|
| Duplex 2205 Flanges Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| ASME B16.5 Duplex 2205 Flange size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Duplex 2205 Flange Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Duplex 2205 Flange Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Duplex 2205 Flange Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Duplex 2205 Flange Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Duplex 2205 Flange Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Most common types of Duplex 2205 Flanges |
|
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove |
| Duplex 2205 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Duplex 2205 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Specialized manufacturer of |
|
| Test | Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | West Europe /Indian / USA / Japan / Korean |
| Duplex 2205 2205 Flanges Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| Key markets and industries for Duplex 2205 Flanges |
|
| Export to | Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Manama, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, etc |
| Duplex 2205 Flanges Application |
|
| The Chemical Composition of 2205 Duplex Steel Flanges, % | |
|---|---|
| Sulfur | ≤0.02 |
| Chromium | 21.0-23.0 |
| Nickel | 4.5-6.5 |
| Carbon | ≤0.03 |
| Manganese | ≤2.00 |
| Silicon | ≤1.00 |
| Phosphate | ≤0.03 |
| Molybdenum | 2.5-3.5 |
| Nitrogen | 0.08-0.2 |
| Gr. | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| Duplex Steel S32205 Flanges | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
At Nasir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Duplex Steel 2205 Flanges in Manama, Bahrain, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Bahrain, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Duplex Steel 2205 Flanges are widely used in industries requiring high corrosion resistance, mechanical strength, and durability. They are ideal for chemical processing equipment, petrochemical plants, heat exchangers, offshore platforms, marine systems, and high-pressure industrial pipelines. Their resistance to pitting, crevice corrosion, and stress corrosion cracking makes them suitable for aggressive chemical, chloride-rich, and marine environments. These flanges provide secure, leak-proof connections in piping and process systems, ensuring safe and efficient operation. By delivering long-term performance under demanding conditions, Duplex Steel 2205 Flanges ensure durable, efficient, and reliable operation across chemical, petrochemical, marine, and industrial applications.
