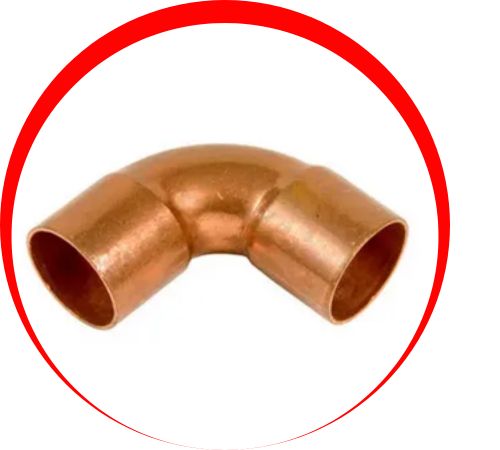

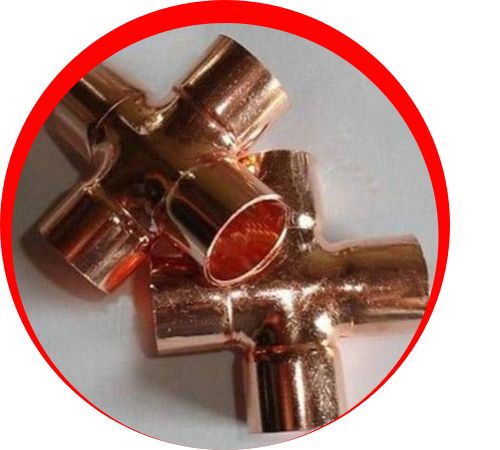

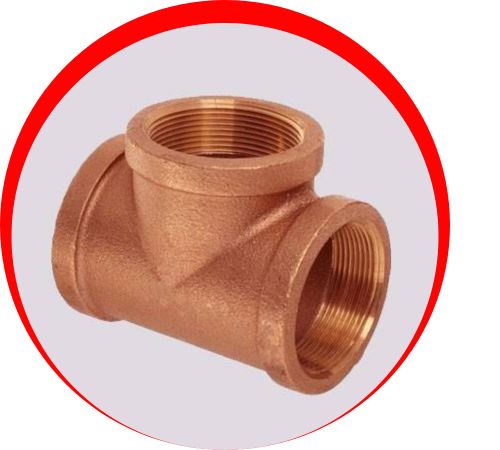

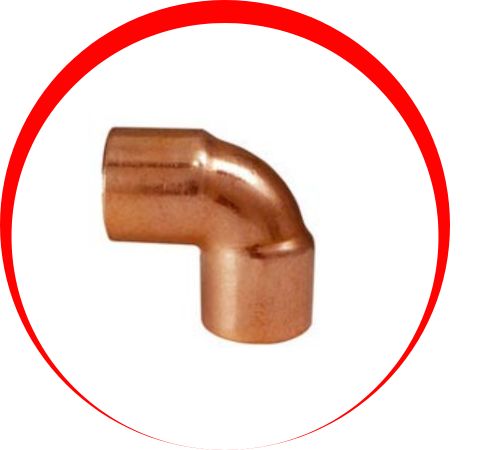

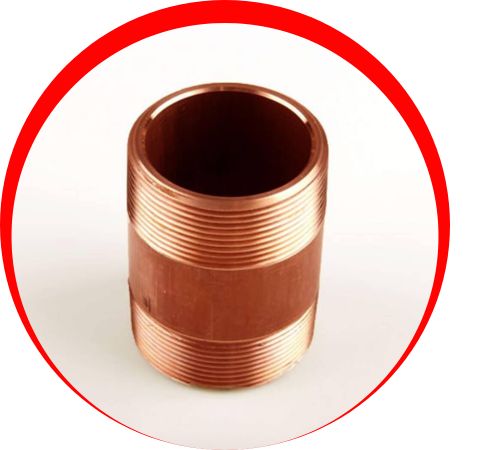

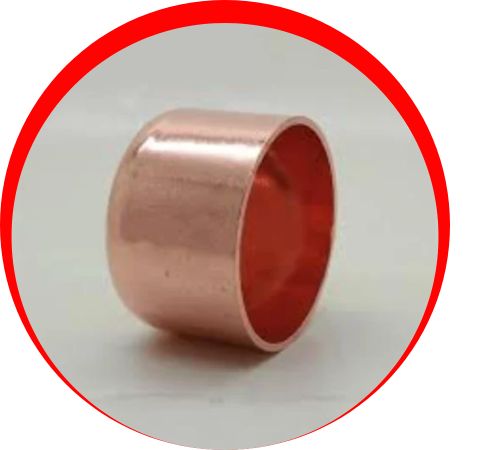

At Nasir Nickel Alloys in Manama, Bahrain, Copper Nickel 90/10 Forged Fittings are engineered to provide exceptional corrosion resistance, mechanical strength, and long-term reliability for demanding marine and industrial applications. Manufactured from a high-quality copper-nickel alloy containing 90% copper and 10% nickel, these fittings offer superior resistance to seawater, brackish water, and chemically aggressive environments while maintaining dimensional stability under fluctuating pressures and temperatures. Each fitting is precision-forged to ensure leak-proof, secure connections and consistent performance. Designed for piping, heat exchangers, and industrial systems, Copper Nickel 90/10 Forged Fittings deliver dependable solutions for corrosion-prone and high-pressure applications.
Copper Nickel 90/10 Forged Fittings are composed of 90% copper and 10% nickel, with minor iron and manganese additions to enhance strength, corrosion resistance, and durability. This alloy provides excellent performance in seawater, brackish water, and chemically aggressive environments, resisting pitting, erosion, and stress corrosion cracking. Mechanically, the fittings exhibit high tensile and yield strength, toughness, and reliable fatigue resistance under thermal cycling and fluctuating pressures. The combination of superior corrosion resistance and mechanical robustness ensures Copper Nickel 90/10 Forged Fittings perform reliably in marine, chemical, and industrial applications requiring long-term durability.
Cupro Nickel Forged Fittings Specification : ASTM B467 / ASME SB467
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
|---|---|---|---|---|---|---|
| Cupro Nickel 90/10 | 88.6 | 1.0 max | 0.05 max | 9 – 11 max | 1.8 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
At Nasir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 90/10 Forged Fittings in Manama, Bahrain, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Bahrain, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel 90/10 Forged Fittings are widely used in industries that demand high corrosion resistance, mechanical strength, and durability. They are ideal for seawater piping, desalination plants, heat exchangers, marine systems, and chemical processing units. Their excellent resistance to seawater, brackish water, and aggressive chemical environments makes them suitable for offshore platforms, shipbuilding, cooling water systems, and high-pressure industrial pipelines. These fittings provide secure, leak-proof connections and maintain consistent performance under fluctuating temperatures and pressures. By offering long-term reliability and robustness in harsh conditions, Copper Nickel 90/10 Forged Fittings ensure safe, efficient, and durable operation in critical marine and industrial systems.
